Description:
Introducing the MG1601 Audio Video Selector, the ultimate solution for seamless AV signal management! With the capability to connect up to sixteen different AV signal sources and switch between them effortlessly, this device is perfect for anyone looking to enhance their home entertainment system, educational setup, or conference presentations. The MG1601 ensures lossless switching of AV signals, allowing multiple display devices to share a single source without compromising on quality.
This AV switcher supports a variety of resolutions and is designed for high-definition screens, making it an essential tool for large-screen displays. Its built-in multi-stage amplifier circuit guarantees optimal performance, ensuring that your video and audio signals remain crystal clear even when displayed on larger screens. Compatible with a wide range of devices, including VCDs, DVDs, video cameras, digital TV set-top boxes, and more, the MG1601 is your go-to solution for versatile AV connectivity.
Experience strong anti-interference capabilities with the MG1601, which allows for cascading expansion and independent output of audio and video signals from each port, ensuring that your devices do not interfere with one another. Switching between the sixteen AV interfaces is a breeze with the user-friendly front panel buttons, making it easy to select your desired content for display.

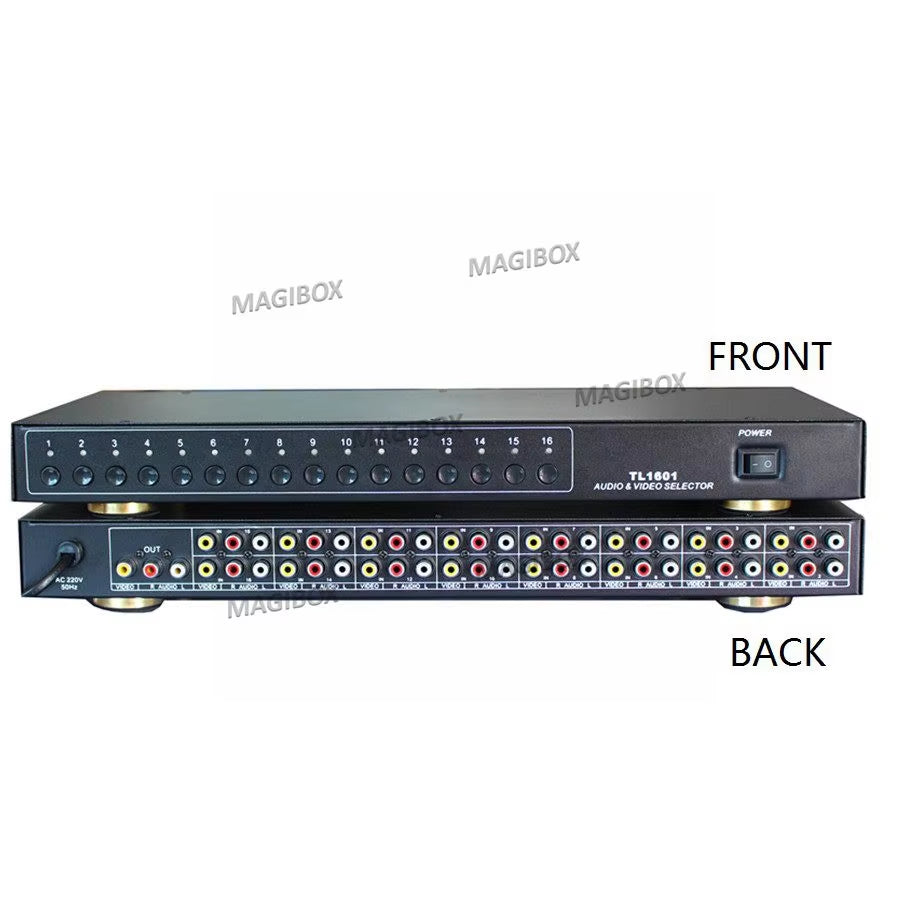

Picture :
Features:
1. Equipped with HD signal amplification, perfect for conferencing systems and large-scale displays.
2. Universal compatibility with all brands of DVD players, VCDs, cameras, TVs, and set-top boxes.
3. No signal loss over extended distances, capable of wiring up to 100 meters.
4. Cascadable design allows for easy addition or removal of AV interfaces as needed.
5. Simple installation process ensures that you can set it up and start using it right away.
Parameter description:
Sixteen AV signal inputs and one AV output.
Video Input: 1vp-p / 75 Ω
Audio Input: 2.2vp-p / 20k Ω
Video Gain: 0db <1DB
Audio Gain: -3db <0DB
Voltage: AC185-250V 50HZ
Product Dimensions: 395X225X50MM
Rated Power: 5W
Operating Temperature: -10 degrees to 40 degrees ---
Weight: 2.5kg
